Air-Cooled Condensers

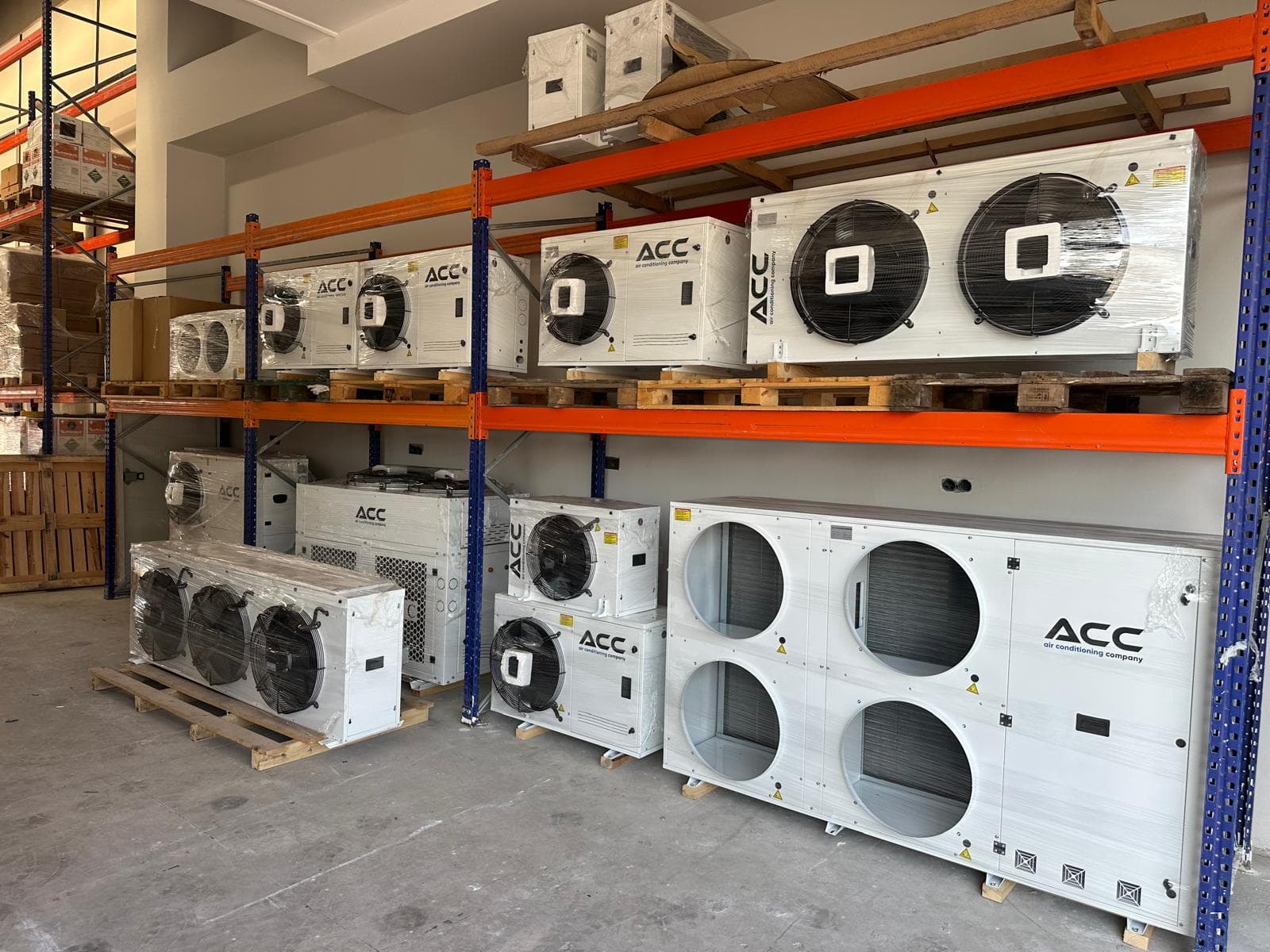

High-capacity multi-fan air-cooled condensers for outdoor installation — ACC branded housings with service access panels.
About this equipment
ACC air-cooled condensers reject heat outdoors with multi-fan coil packs. Four-fan and other multi-fan layouts support larger refrigeration racks, parallel piston packs and screw systems where footprint and airflow matter.
Powder-coated cabinets carry ACC branding and hinged service panels. Coil and fan combinations are selected against ambient design temperature, refrigerant and required heat rejection.
Design highlights
Multi-fan capacity

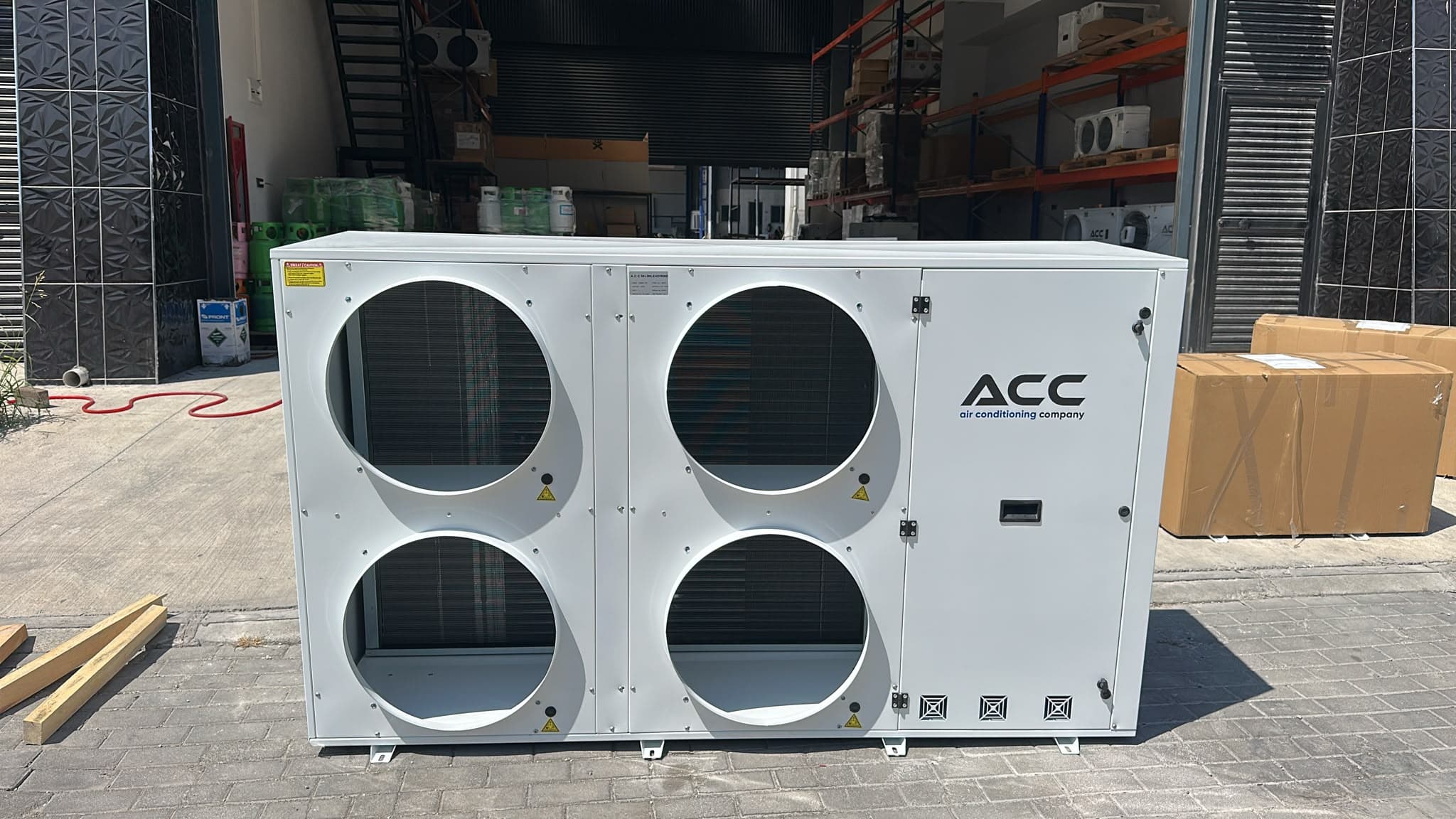

2×2 and linear multi-fan faces for higher air volume and redundancy.
Outdoor duty housing
Weather-oriented powder coat with latchable access for coil and fan service.
Project matching
Sized against heat rejection, ambient and refrigerant — including R134a / R404A / R507A class systems.
Applications
- Parallel compressor racks
- Industrial and commercial plant yards
- High ambient outdoor heat rejection
Technical properties
- Type
- Air-cooled condenser, multi-fan
- Fan layout examples
- 2-fan, 3-fan, 4-fan (2×2) packs
- Installation
- Outdoor / plant-yard floor or frame mount
- Compatible refrigerants
- R134a, R404A, R507A, R407C and project blends
Tell us design ambient, refrigerant and required kW heat rejection — we will propose fan count and coil size.
